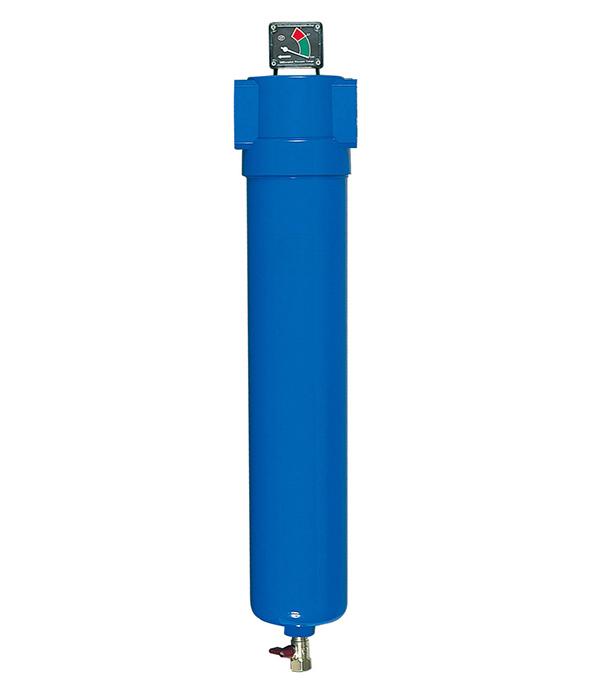

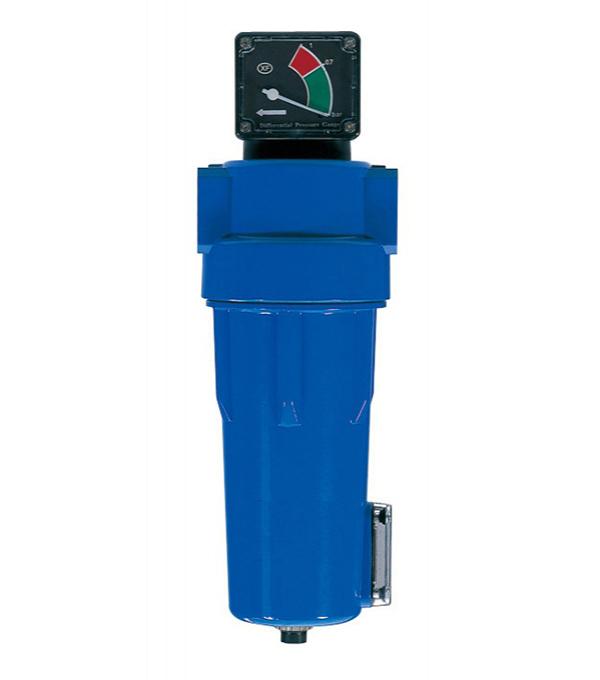

Threaded Compressed Air Filters, Grade XF5 Filteration

Grade XF5 threaded compressed air filters are used to collect and remove tiny steam and oil mist particles. 0.01μm or larger solid particles are filtered with a maximum residual oil content of 0.01ppm. Nearly all water, dust and oil will be removed from the air with these highly effective filters. The filter housing is made of aluminum alloy or carbon steel, and the filter element is made of glass fiber.

Applications
  • Mechanical engineering
  • Instrument
  • Chemistry industry
  • Food industry
  • Power station
  • Beverage industry
  • Pharmaceutical engineering
Specifications
Filter Model No. Photos Nominal Flow Rate (NM3/min) Connection Size Element Model No. Number of Elements Overall Dimension(mm)
A B C
XF5-16
Threaded Connection Filter, Series XF5-36
1 1/2" E5-16 1 104 217 243
XF5-20
Threaded Connection Filter, Series XF5-36
1.72 1" E5-20 1 104 287 313
XF5-24
Threaded Connection Filter, Series XF5-36
2.9 1-1/2" E5-24 1 138 385 424
XF5-28
Threaded Connection Filter, Series XF5-36
4.9 1-1/2" E5-28 1 138 385 424
XF5-32
Threaded Connection Filter, Series XF5-36
7.2 1-1/2" E5-32 1 138 585 624
XF5-36
Threaded Connection Filter, Series XF5-36
10.7 1-1/2" E5-36 1 138 585 624
XF5-36
Threaded Connection Filter, Series XF5-36
10.7 2" E5-36 1 148 639 685
XF5-40
Threaded Connection Filter, Series XF5-36
14 2" E5-40 1 148 639 685
XF5-44
Threaded Connection Filter, Series XF5-36
17.7 2-1/2" E5-44 1 150 800 580
XF5-48
Threaded Connection Filter, Series XF5-36
22 2-1/2" E5-48 1 150 940 990
Correction factor
Operating Pressure 2 3 4 5 6 7 8 9 10 12 14 16 18 20 21
Correction Factor 0.38 0.5 0.62 0.75 0.87 1 1.12 1.24 1.37 1.62 1.86 2.11 2.36 2.61 2.73

Hualing has been specializing in industrial filtration since 1992, we provide our customers with industrial filtration equipment to fit their compressed air filtration needs. Our filtering systems with filter elements are applicable to a wide range of general industry, electronics, chemical, machinery, textile, and aviation industry applications. If you are looking for one-stop air filter supplier, we are a specialist presents you appropriate and effective filtration solutions for your compressed air applications.
