Flanged Compressed Air Filters, Grade XF7 Filteration

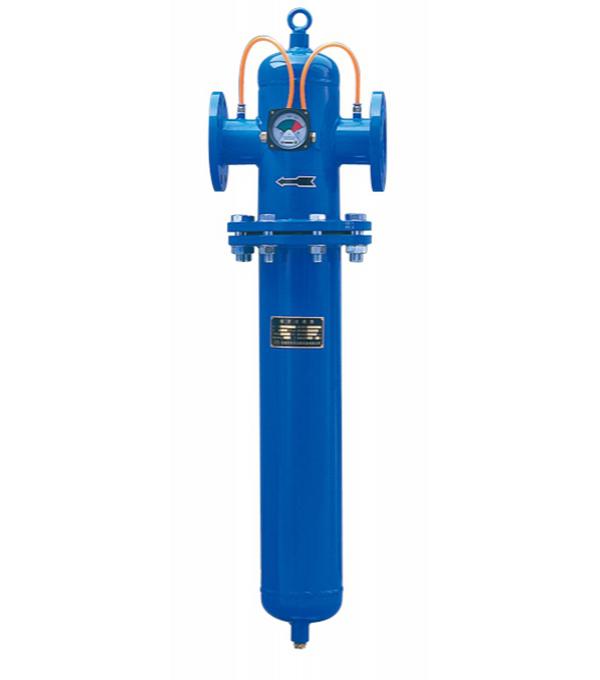

Grade XF7 flanged air filters are used for the filtration of liquid water and oil particles. Particles 1μm or larger, with a maximum residual oil content of 1.0ppm will be effectively captured by the filter element. The filter housing is produced from either aluminum alloy or carbon steel, and the filter element is made from glass fiber.
- Mechanical engineering
- Petrochemical industry
- Chemistry industry
- Food industry
- Power station

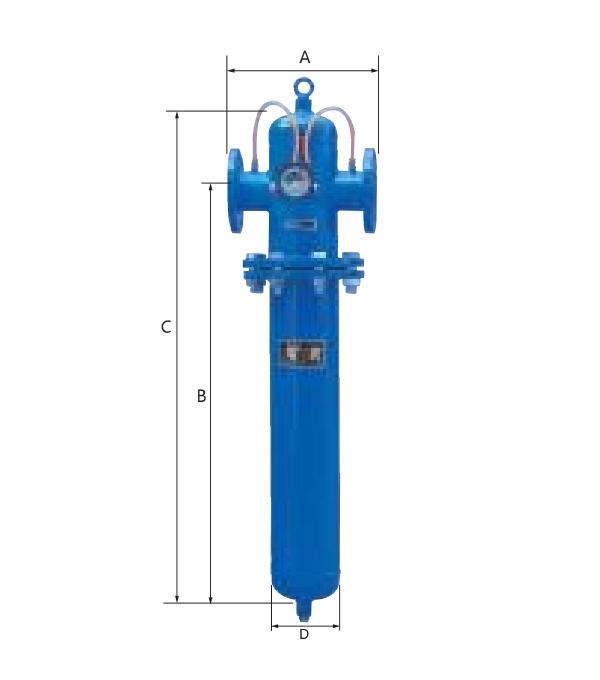

| Filter Model No. | Photos | Nominal Flow Rate (NM3/min) | Connection Size | Element Model No. | Number of Elements | Overall Dimension(mm) | |||
| A | B | C | D(housing TD) | ||||||
| XF7-44 |  | 17.7 | DN65 | E7-44 | 1 | 300 | 770 | 940 | 125 |
| XF7-48 | | 22 | DN80 | E7-48 | 1 | 336 | 943 | 1118 | 150 |
| XF7-56 | | 36 | DN100 | E7-44 | 2 | 500 | 1050 | 1250 | 207 |
| XF7-60 | | 54 | DN100 | E7-44 | 3 | 500 | 1050 | 1250 | 259 |
| XF7-64 | | 72 | DN100 | E7-44 | 4 | 600 | 990 | 1250 | 350 |
| XF7-68 | | 90 | DN125 | E7-44 | 5 | 600 | 990 | 1250 | 350 |
| XF7-70 | | 108 | DN125 | E7-44 | 6 | 600 | 1070 | 1350 | 350 |
| XF7-72 | | 126 | DN150 | E7-44 | 7 | 630 | 1020 | 1350 | 400 |
| XF7-73 | | 144 | DN150 | E7-44 | 8 | 700 | 1020 | 1350 | 450 |
| XF7-74 | | 162 | DN150 | E7-44 | 9 | 780 | 1070 | 1400 | 500 |
| XF7-75 | | 180 | DN150 | E7-44 | 10 | 780 | 1070 | 1400 | 500 |
| XF7-76 | | 198 | DN150 | E7-44 | 11 | 780 | 1070 | 1400 | 550 |
| XF7-80 | | 252 | DM150 | E7-44 | 14 | 780 | 1130 | 1460 | 550 |
| Operating Pressure | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 16 | 18 | 20 | 21 |
| Correction Factor | 0.38 | 0.5 | 0.62 | 0.75 | 0.87 | 1 | 1.12 | 1.24 | 1.37 | 1.62 | 1.86 | 2.11 | 2.36 | 2.61 | 2.73 |
Hualing has been specializing in industrial filtration since 1992, we provide our customers with industrial filtration equipment to fit their compressed air filtration needs. Our filtering systems with filter elements are applicable to a wide range of general industry, electronics, chemical, machinery, textile, and aviation industry applications. If you are looking for one-stop air filter supplier, we are a specialist presents you appropriate and effective filtration solutions for your compressed air applications.
