Compressed Air Filter

Hualing compressed air filters are mainly applied for the filtration of dust, condensed water, lubricants, oil mist, chemicals and other impurities that can be present in compressed air systems. They feature a simple structure with a housing and filter element. Housings can be made from aluminum alloy, carbon steel and stainless steel, and the specific material is determined according to the application conditions. Filter elements can be customized according to your requirements. Compressed air filters can remove 99.99% impurities from the air to improve your working efficiency and reduce operation costs.

XF Threaded Compressed Air Filters
    1. XF Threaded Compressed Air Filters
    2. Filter Grade Filtration rate Efficiency Residual oil content at an inlet of 3 mg/m3
      XF9 3μm 99% 5
      XF7 1μm 99% 1
      XF5 0.01μm 99% 0.01
      XF3 0.01μm 99% 0.001
      XF1 0.01μm 99% 0.001

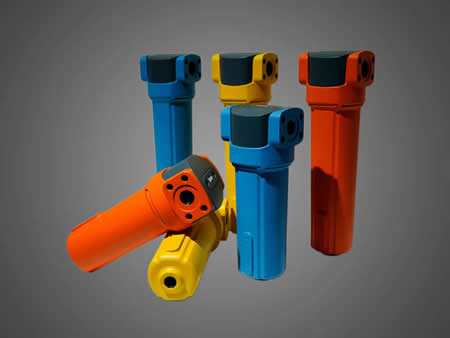

HLZ Threaded Compressed Air Filters
    1. HLZ Threaded Compressed Air Filters
    2. Model NO. Nominal Flow Rate (NM³/min) Element Model NO. A B C H
      HLZ*-05/10 0.5/1.0 Z*-05/10 217 92 G1/2" 243.5
      HLZ*-20/26 2.0/2.6 Z*-20/26 287 92 G3/4" 312.5
      HLZ*-35/55 3.5/5.5 Z*-35/55 319.5 126 G1" 354.5
      HLZ*-75/95 7.5/10.7 Z*-75/95 389.5 126 G1-1/2" 424.5
Flanged Compressed Air Filters
    1. Flanged Compressed Air Filters
    2. Filter Grade Filtration rate Efficiency Residual oil content at an inlet of 3 mg/m3 Max. differential pressure Start-up differential pressure
      XF9 3μm 99% 5
      XF7 1μm 99% 1
      XF5 0.01μm 99% 0.01
      XF3 0.01μm 99% 0.001
      XF1 0.01μm 99% 0.001
QS Series Air Water Separator Filter
    1. QS Series Air Water Separator Filter
    2. Model No. Nominal Flow Rate @7 Bar(mm) Connection Size(d) Separation Efficiency Max. Operating Temperature Min. Operating Temperature Max. Operating Pressure Overall Dimension(mm)
      ℃ ℃ bar A B C
      QS015 1.5~2.4 1/2" ≥99% 66 1.5 16 90 26 211
      QS025 2.5~3.6 3/4" 90 26 211
      QS037 3.7~5.4 1" 90 26 211
      QS055 5.5~8.6 1-1/4" 120 39 292
      QS087 8.7~13 1-1/2" 120 39 292
      QS140 14~29 2" 160 45 459
Stainless Steel Water Filter,Series HLF
    1. Stainless Steel Water Filter,Series HLF
    2. Filter Model No. Nominal Flow Rate (NM3/min) Number of Elements Length of element Diameter of inlet and outlet Correction method Height
      HLF-01-1 0.5 1 10" G1/2" Fast open 350
      HLF-01-2605 1 1 20" G3/4" or 1" Fast open 605

Hualing has been specializing in industrial filtration since 1992, we provide our customers with industrial filtration equipment to fit their compressed air filtration needs. Our filtering systems with filter elements are applicable to a wide range of general industry, electronics, chemical, machinery, textile, and aviation industry applications. If you are looking for one-stop air filter supplier, we are a specialist presents you appropriate and effective filtration solutions for your compressed air applications.
