QS Series Air Water Separator Filter

QS Series Air Water Separator Filter
QS Series Air Water Separator Filter QS Series Air Water Separator Filter QS Series Air Water Separator Filter

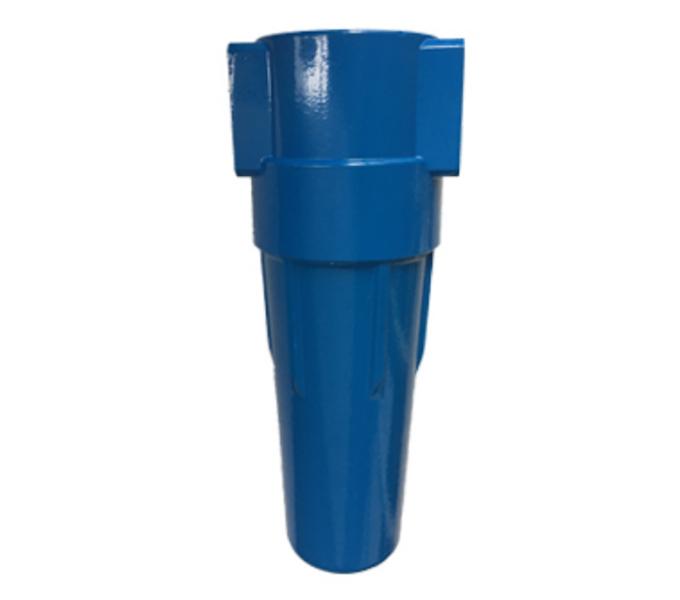

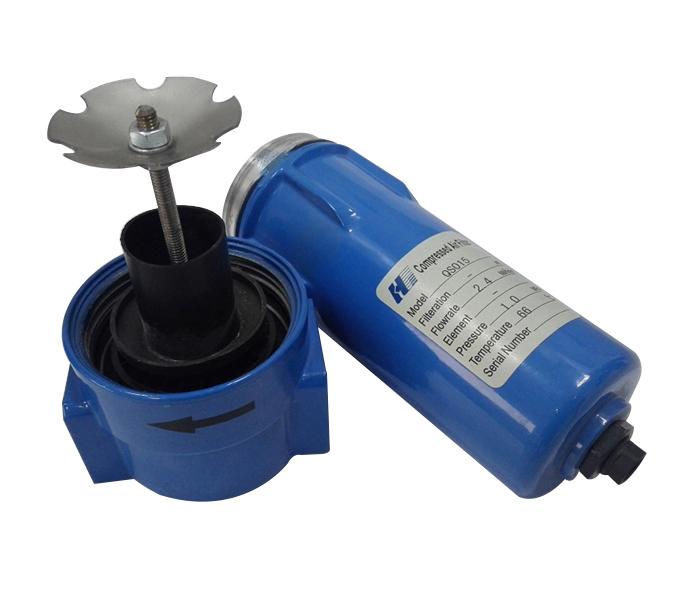

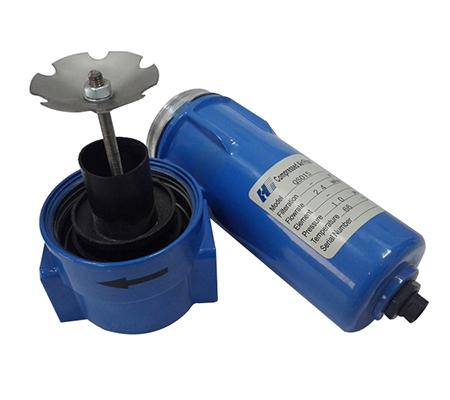

QS series air water separator filters are essential pre-treatment devices in efficient compressed filters and are designed to remove water mist from compressed air. It’s an important step for water removal in purification of compressed air as water with impurities will corrode pipes, valves, instruments, and other equipment, leading to an increase in production and maintenance costs. The housing on the QS series air water separator filters is made of a surface treated aluminum alloy with an outstanding corrosion resistance. An automatic drain valve is also installed on the interior, ensuring there is no need to replace components.

Applications
  • Electronics industry
  • Pharmaceutical engineering
  • Food and beverage
  • Chemical industry
  • Power station
Features
  • Max. operating pressure: 16 bar
  • Water separation efficiency: ≥99%
  • Max. operating temperature: 66℃
  • Min. operating temperature: 1.5℃
Technical parameters
Model No. Photos Nominal Flow Rate @7 Bar(mm) Connection Size(d) Separation Efficiency Max. Operating Temperature Min. Operating Temperature Max. Operating Pressure Overall Dimension(mm)
℃ ℃ bar A B C
QS015
QS015
1.5~2.4 1/2" ≥99% 66 1.5 16 90 26 211
QS025
QS025
2.5~3.6 3/4" 90 26 211
QS037
QS037
3.7~5.4 1" 90 26 211
QS055
QS055
5.5~8.6 1-1/4" 120 39 292
QS087
QS087
8.7~13 1-1/2" 120 39 292
QS140
QS140
14~29 2" 160 45 459

Hualing has been specializing in industrial filtration since 1992, we provide our customers with industrial filtration equipment to fit their compressed air filtration needs. Our filtering systems with filter elements are applicable to a wide range of general industry, electronics, chemical, machinery, textile, and aviation industry applications. If you are looking for one-stop air filter supplier, we are a specialist presents you appropriate and effective filtration solutions for your compressed air applications.
