Flanged Compressed Air Filters, Grade XF3 Filteration

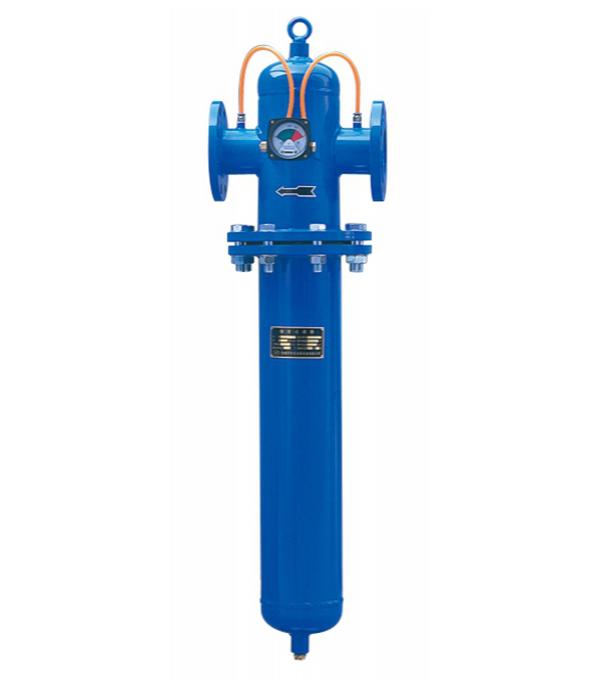

Grade XF3 flanged compressed air filters are an effective method for the removal of tiny steam and oil mist. Solid particles 0.01μm or larger are filtered with a maximum residual oil content of 0.001ppm, ensuring air is free of oil. The filter housing is made of aluminum alloy or carbon steel with a glass fiber filter element.
- Mechanical engineering
- Petrochemical industry
- Chemistry industry
- Food industry
- Power station
- Beverage industry
- Pharmaceutical engineering

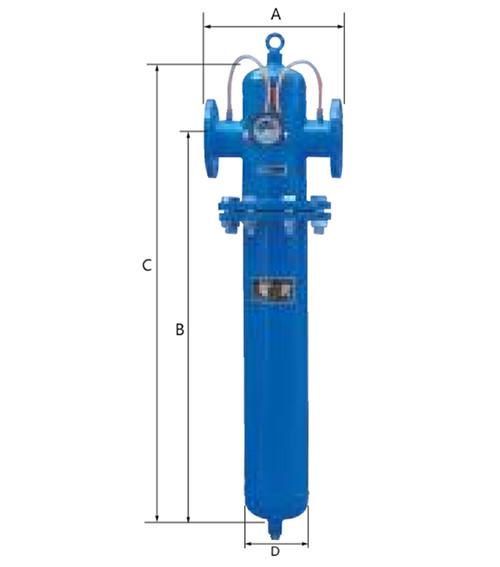

| Filter Model No. | Photos | Nominal Flow Rate (NM3/min) | Connection Size | Element Model No. | Number of Elements | Overall Dimension(mm) | |||
| A | B | C | D(housing TD) | ||||||
| XF3-44 |  | 17.7 | DN65 | E3-44 | 1 | 300 | 770 | 940 | 125 |
| XF3-48 | | 22 | DN80 | E3-48 | 1 | 336 | 943 | 1118 | 150 |
| XF3-56 | | 36 | DN100 | E3-44 | 2 | 500 | 1050 | 1250 | 207 |
| XF3-60 | | 54 | DN100 | E3-44 | 3 | 500 | 1050 | 1250 | 259 |
| XF3-64 | | 72 | DN100 | E3-44 | 4 | 600 | 990 | 1250 | 350 |
| XF3-68 | | 90 | DN125 | E3-44 | 5 | 600 | 990 | 1250 | 350 |
| XF3-70 | | 108 | DN125 | E3-44 | 6 | 600 | 1070 | 1350 | 350 |
| XF3-72 | | 126 | DN150 | E3-44 | 7 | 630 | 1020 | 1350 | 400 |
| XF3-73 | | 144 | DN150 | E3-44 | 8 | 700 | 1020 | 1350 | 450 |
| XF3-74 | | 162 | DN150 | E3-44 | 9 | 780 | 1070 | 1400 | 500 |
| XF3-75 | | 180 | DN150 | E3-44 | 10 | 780 | 1070 | 1400 | 500 |
| XF3-76 | | 198 | DN150 | E3-44 | 11 | 780 | 1070 | 1400 | 550 |
| XF3-80 | | 252 | DM150 | E3-44 | 14 | 780 | 1130 | 1460 | 550 |
| Operating Pressure | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 16 | 18 | 20 | 21 |
| Correction Factor | 0.38 | 0.5 | 0.62 | 0.75 | 0.87 | 1 | 1.12 | 1.24 | 1.37 | 1.62 | 1.86 | 2.11 | 2.36 | 2.61 | 2.73 |
Hualing has been specializing in industrial filtration since 1992, we provide our customers with industrial filtration equipment to fit their compressed air filtration needs. Our filtering systems with filter elements are applicable to a wide range of general industry, electronics, chemical, machinery, textile, and aviation industry applications. If you are looking for one-stop air filter supplier, we are a specialist presents you appropriate and effective filtration solutions for your compressed air applications.
