Threaded Compressed Air Filters, Grade XF3 Filteration
Grade XF3 threaded compressed air filters are applied for the filtration of tiny steam and oil mist particles. It can also filter 0.01μm or larger solid particles with a maximum residual oil content of 0.001ppm, ensuring the air is free from oil. The filter housing is made from aluminum alloy or carbon steel, while the filter element is made of glass fiber.
- Mechanical engineering
- Petrochemical industry
- Chemistry industry
- Food industry
- Power station
- Beverage industry
- Pharmaceutical engineering
| Filter Model No. | Photos | Nominal Flow Rate (NM3/min) | Connection Size | Element Model No. | Number of Elements | Overall Dimension(mm) | ||
| A | B | C | ||||||

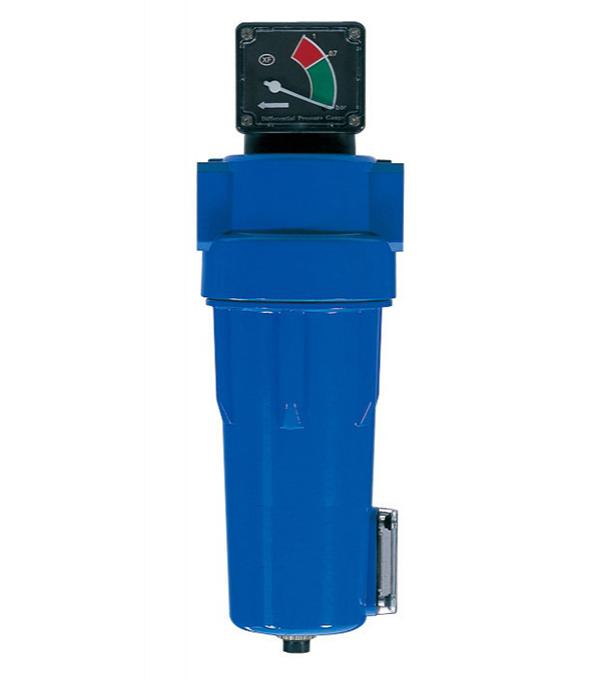

| XF3-16 |  | 1 | 1/2" | E3-16 | 1 | 104 | 217 | 243 |
| XF3-20 | | 1.72 | 1" | E3-20 | 1 | 104 | 287 | 313 |
| XF3-24 | | 2.9 | 1-1/2" | E3-24 | 1 | 138 | 385 | 424 |
| XF3-28 | | 4.9 | 1-1/2" | E3-28 | 1 | 138 | 385 | 424 |
| XF3-32 | | 7.2 | 1-1/2" | E3-32 | 1 | 138 | 585 | 624 |
| XF3-36 | | 10.7 | 1-1/2" | E3-36 | 1 | 138 | 585 | 624 |

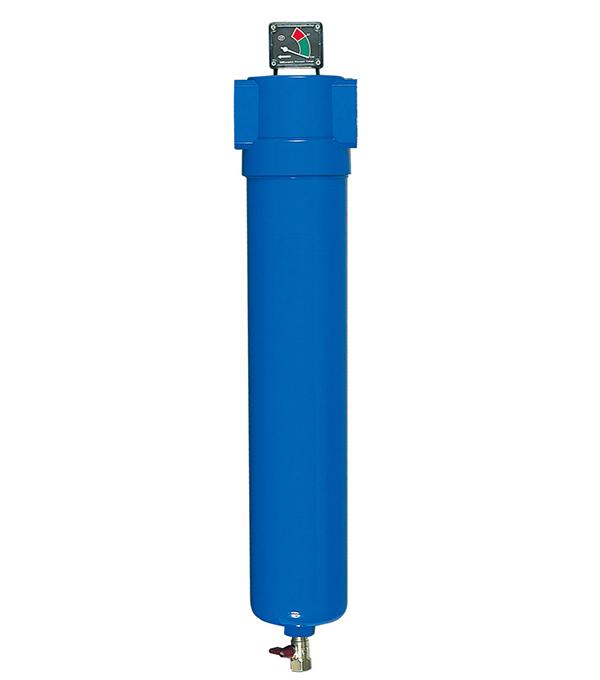

| XF3-36 |  | 10.7 | 2" | E3-36 | 1 | 148 | 639 | 685 |
| XF3-40 | | 14 | 2" | E3-40 | 1 | 148 | 639 | 685 |
| XF3-44 | | 17.7 | 2-1/2" | E3-44 | 1 | 150 | 800 | 580 |
| XF3-48 | | 22 | 2-1/2" | E3-48 | 1 | 150 | 940 | 990 |
| Operating Pressure | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 16 | 18 | 20 | 21 |
| Correction Factor | 0.38 | 0.5 | 0.62 | 0.75 | 0.87 | 1 | 1.12 | 1.24 | 1.37 | 1.62 | 1.86 | 2.11 | 2.36 | 2.61 | 2.73 |
Hualing has been specializing in industrial filtration since 1992, we provide our customers with industrial filtration equipment to fit their compressed air filtration needs. Our filtering systems with filter elements are applicable to a wide range of general industry, electronics, chemical, machinery, textile, and aviation industry applications. If you are looking for one-stop air filter supplier, we are a specialist presents you appropriate and effective filtration solutions for your compressed air applications.
