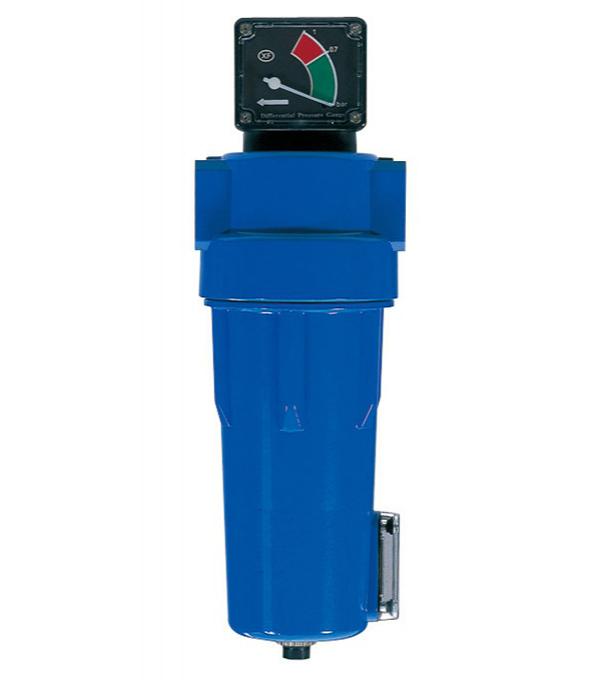

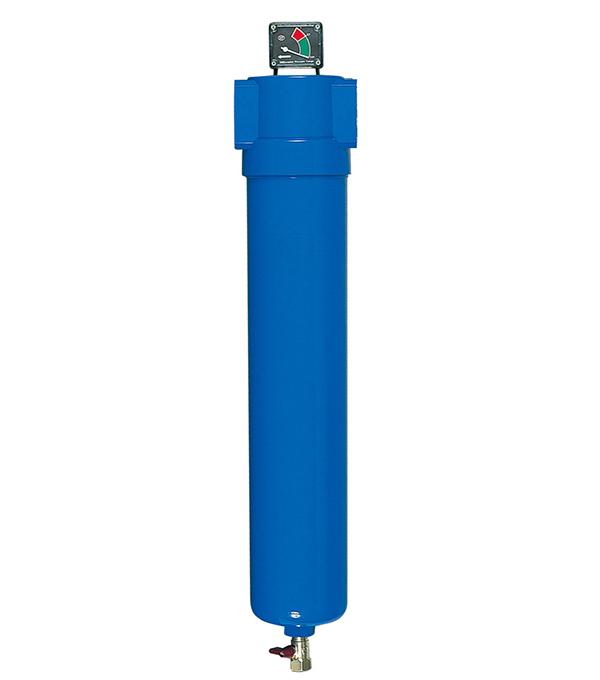

Threaded Compressed Air Filters, Grade XF1 Filteration

Grade XF1 threaded compressed air filters are used for the high-efficiency filtration of oil vapor and hydrocarbon vapor through adsorption using activated carbon. 0.01μm or larger solid particles are filtered with a maximum residual oil content of 0.003ppm, ensuring the air is free of water, dust, oil, and odors. These filters are often used in the last step of filtration, with the filter housing produced from aluminum alloy or carbon steel. Carbon steel is most often used in large filters and high-pressure systems. The filter element is made of glass fiber.

Applications
  • Mechanical engineering
  • Petrochemical industry
  • Chemistry industry
  • Food industry
  • Sterile package
  • Pharmaceutical engineering
  • Beverage industry
Specifications
Filter Model No. Photos Nominal Flow Rate (NM3/min) Connection Size Element Model No. Number of Elements Overall Dimension(mm)
A B C
XF1-16
Threaded Connection Filter, Series XF1-36
1 1/2" E1-16 1 104 217 243
XF1-20
Threaded Connection Filter, Series XF1-36
1.72 1" E1-20 1 104 287 313
XF1-24
Threaded Connection Filter, Series XF1-36
2.9 1-1/2" E1-24 1 138 385 424
XF1-28
Threaded Connection Filter, Series XF1-36
4.9 1-1/2" E1-28 1 138 385 424
XF1-32
Threaded Connection Filter, Series XF1-36
7.2 1-1/2" E1-32 1 138 585 624
XF1-36
Threaded Connection Filter, Series XF1-36
10.7 1-1/2" E1-36 1 138 585 624
XF1-36
Threaded Connection Filter, Series XF1-36
10.7 2" E1-36 1 148 639 685
XF1-40
Threaded Connection Filter, Series XF1-36
14 2" E1-40 1 148 639 685
XF1-44
Threaded Connection Filter, Series XF1-36
17.7 2-1/2" E1-44 1 150 800 580
XF1-48
Threaded Connection Filter, Series XF1-36
22 2-1/2" E1-48 1 150 940 990
Correction factor
Operating Pressure 2 3 4 5 6 7 8 9 10 12 14 16 18 20 21
Correction Factor 0.38 0.5 0.62 0.75 0.87 1 1.12 1.24 1.37 1.62 1.86 2.11 2.36 2.61 2.73

Hualing has been specializing in industrial filtration since 1992, we provide our customers with industrial filtration equipment to fit their compressed air filtration needs. Our filtering systems with filter elements are applicable to a wide range of general industry, electronics, chemical, machinery, textile, and aviation industry applications. If you are looking for one-stop air filter supplier, we are a specialist presents you appropriate and effective filtration solutions for your compressed air applications.
