Threaded Compressed Air Filters, Grade XF7 Filteration

Grade XF7 threaded compressed air filters are used for the high-efficiency filtration of liquid water and oil. 1μm or larger solid particles are removed with a maximum residual oil content of 1ppm. The filter housing is produced from aluminum alloy or carbon steel, and the filter element is made from glass fiber.

Applications
  • Mechanical engineering
  • Petrochemical industry
  • Chemistry industry
  • Food industry
  • Power station
Specifications
Filter Model No. Photos Nominal Flow Rate (NM3/min) Connection Size Element Model No. Number of Elements Overall Dimension(mm)
A B C
XF7-16

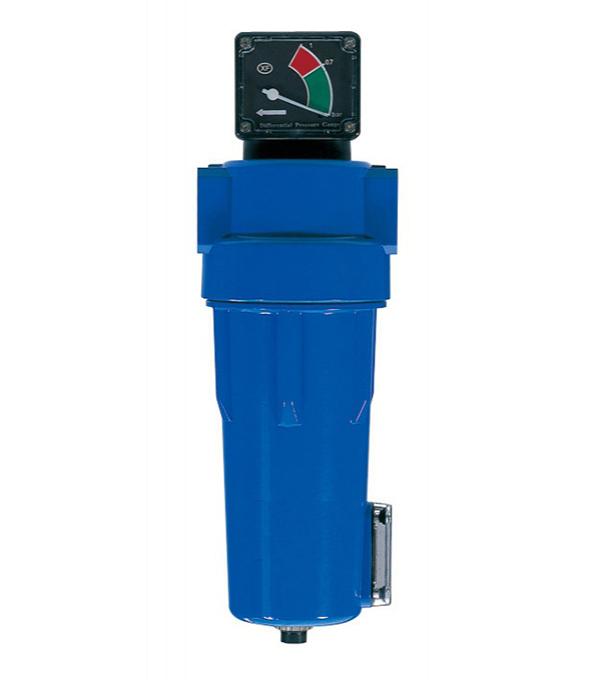

Threaded Connection Filter, Series XF7-16
1 1/2" E7-16 1 104 217 243
XF7-20
Threaded Connection Filter, Series XF7-16
1.72 1" E7-20 1 104 287 313
XF7-24
Threaded Connection Filter, Series XF7-16
2.9 1-1/2" E7-24 1 138 385 424
XF7-28
Threaded Connection Filter, Series XF7-16
4.9 1-1/2" E7-28 1 138 385 424
XF7-32
Threaded Connection Filter, Series XF7-16
7.2 1-1/2" E7-32 1 138 585 624
XF7-36
Threaded Connection Filter, Series XF7-16
10.7 1-1/2" E7-36 1 138 585 624
XF7-36

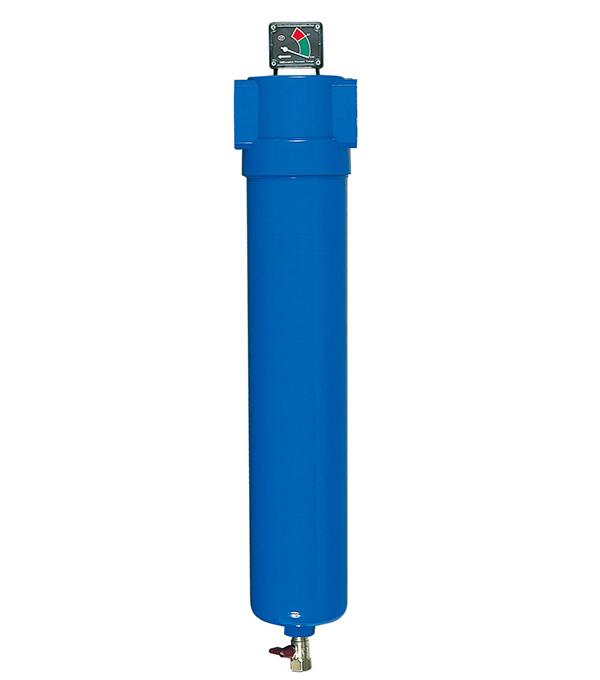

Threaded Connection Filter, Series XF7-36
10.7 2" E7-36 1 148 639 685
XF7-40
Threaded Connection Filter, Series XF7-36
14 2" E7-40 1 148 639 685
XF7-44
Threaded Connection Filter, Series XF7-36
17.7 2-1/2" E7-44 1 150 800 580
XF7-48
Threaded Connection Filter, Series XF7-36
22 2-1/2" E7-48 1 150 940 990
Correction factor
Operating Pressure 2 3 4 5 6 7 8 9 10 12 14 16 18 20 21
Correction Factor 0.38 0.5 0.62 0.75 0.87 1 1.12 1.24 1.37 1.62 1.86 2.11 2.36 2.61 2.73

Hualing has been specializing in industrial filtration since 1992, we provide our customers with industrial filtration equipment to fit their compressed air filtration needs. Our filtering systems with filter elements are applicable to a wide range of general industry, electronics, chemical, machinery, textile, and aviation industry applications. If you are looking for one-stop air filter supplier, we are a specialist presents you appropriate and effective filtration solutions for your compressed air applications.
